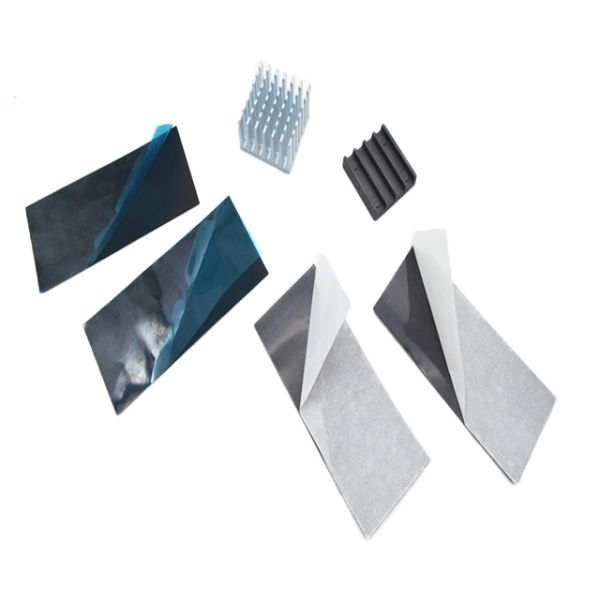

Recommended Operating Temperture -40℃~400℃ Flexible Graphene Homogeneous Material Thermal Graphite Sheet For Electronic Products
TIR®200 Series is a high-performance thermal management material_based on high-qualitygraphene. Through innovative microstructural design, it achieves ultra-high in-plane thermal conductivity while maintaining exceptional flexibility. This product rapidly and uniformly_spreads heat from the hotspots of electronic devices across the entire surface, effectively reducing hotspot temperatures and ensuring stable equipment operation. Its excellent flexibility allows it to easily conform to complex application scenarios such as curved surfaces and foldable designs, providing an eficient and reliable thermal dissipation solution for next-generation electronic products.
Feature
>Ultra-high thermal conductivity, far exceeding traditional metals
>Excellent flexibility and bending resistance
>Easy to process and compatible with various components
>Broad operating temperature range
>Ultra-thin and lightweight
Application
>Electric Vehicle (EV) Power Battery Packs
>High-performance Servers
>Communication and Electrical Equipment
>Transportation Equipment
>Electronic Products
| Typical Properties of TIR®200 series |
| Product Name | TIR®217 | TIR®225 | TIR®250 | Test Method |
| Color | Black | Visual |
| Structure & Components | Graphene | - |
| Thickness(mm) | 0.017 | 0.025 | 0.040 | ASTM D374 |
| Density(g/cm³) | 1.9 | 1.8 | 1.7 | ASTM D792 |
| Tensile Strength(Mpa) | 30 | 22 | 22 | ASTM D412 |
| Thermal Conductivity(W/m.K | 1600 | 1350 | 900 | ASTM D5470 |
| Thermal Diffusivity(cm²/s) | 9.0 | 8.0 | 7.0 | ASTM E1461 |
| Specific Heat Capacity (J/g·°C) @50°C | 0.75 | ASTM E1269 |
| Recommended Operating Temperature (°C) | -40℃ ～400℃ | - |
Company profile
Ziitek company is a high-tech enterprise dedicated to the R&D, manufacture and sales of thermal interface materials (TIMs). With rich experience in this field, we provide the latest, most effective one-step thermal management solutions. Our facility includes advanced production equipment, full test equipment, and fully automatic coating production lines capable of manufacturing high performance thermal products including:
Thermal gap pad
Thermal graphite sheet/film
Thermal double-sided tape
Thermal insulation pad
Thermal grease
Phase change material
Thermal gel
All products are compliant with UL94 V-0, SGS and ROHS standards.
Certifications: ISO9001:2015, ISO14001:2004, IATF16949:2016, IECQ QC 080000:2017, UL
Why Choose us ?
1.Our value message is'' Do it right the First time, total quality control''.
2.Our core competencies is thermal conductive interface materials.
3.Competitive advantage products.
4.Condidentiality agreement Bussiness Secrect Contract.
5.Free sample offer.
6.Quality assurance contract.
