Black Thermal Conductive Gap Filler Pad Ultra Soft Thermal Conductive Silicone Pad For Gpu Thermal Management Solutions

Name: Black Thermal Conductive Gap Filler Pad Ultra Soft Thermal Conductive Silicone Pad For Gpu Thermal Management Solutions
Brand: ZIITEK
Price: 1 USD

Wholesale Black Thermal Conductive Gap Filler Pad Ultra Soft Thermal Conductive Silicone Pad For Gpu Thermal Management Solutions from china suppliers

Brand Name : ZIITEK

Model Number : TIF140-01E

Certification : UL and RoHs

Place of Origin : China

MOQ : 1000pcs

Price : negotiation

Supply Ability : 10000pcs/day

Delivery Time : 3-5 days

Packaging Details : 1000pcs/bag

Product name : Black Thermal Conductive Gap Filler Pad Ultra Soft Thermal Conductive Silicone Pad For Gpu Thermal Management Solutions

Color : Black

Thermal conductivity : 1.5 W/m-K

Hardness : 35 Shore 00

Specific Gravity : 2.30 g/cc

Dielectric Breakdown Voltage : >5500 VAC

Material : Ceramic filled silicone elastomer

Thickness : 1.0mmT

Keywords : Thermal Conductive Silicone Pad

Contact Now

Black Thermal Conductive Gap Filler Pad Ultra Soft Thermal Conductive Silicone Pad For Gpu Thermal Management Solutions

Products description

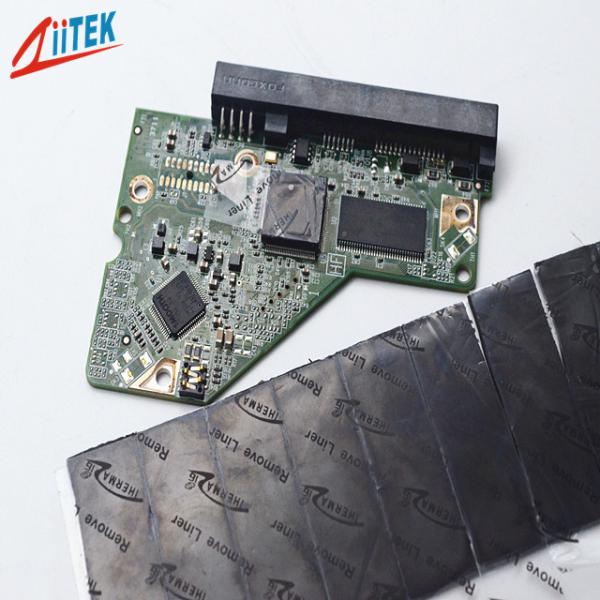

The TIF^®140-01E is a silicone based, thermally conductive gap pad. Its unreinforced construction allows additional compliancy. This product has low hardness is conformable and is electrically isolating. The low modulus characteristic of the product offers optimal thermal performance with the ease of handling.

Features:

> Good thermal conductive: 1.5 W/mK
> Naturally tacky needing no further adhesive coating
> Soft and Compressible for low stress applications
> Available in varies thickness

> Broad range of hardnesses available
> Moldability for complex parts
> Outstanding thermal performance

Applications:

> IGBTs
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics

> CPU
> Display card
> Mainboard/mother board
> Notebook

Typical Properties of TIF^®140-01E Series
Color	Black	Visual
Construction & Compostion	Ceramic filled silicone elastomer	******
Thickness range	0.020"(0.5mm)~0.200"(5.0mm)	ASTM D374
Specific Gravity	2.3 g/cc	ASTM D297
Hardness	35 Shore 00	ASTM 2240
Operating Temp	-40 ~ 160℃	******
Dielectric Breakdown Voltage	>5500 VAC	ASTM D149
Dielectric Constant @1MHz	4.7 MHz	ASTM D150
Volume Resistivity	1.0X10¹²Ohm-cm	ASTM D257
Fire rating	94 V0	UL E331100
Thermal conductivity	1.5 W/m-K	ASTM D5470

Product Specification

Product Thicknesses: 0.020-inch to 0.200-inch (0.5mm to 5.0mm)
Product Sizes: 8" x 16" (203mm x406mm)
Individual die cut shapes and custom thickness can be supplied. Please contact us for confirming.

Packaging Details & Lead time

The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiate

Black Thermal Conductive Gap Filler Pad Ultra Soft Thermal Conductive Silicone Pad For Gpu Thermal Management Solutions

Company Profile

Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.
